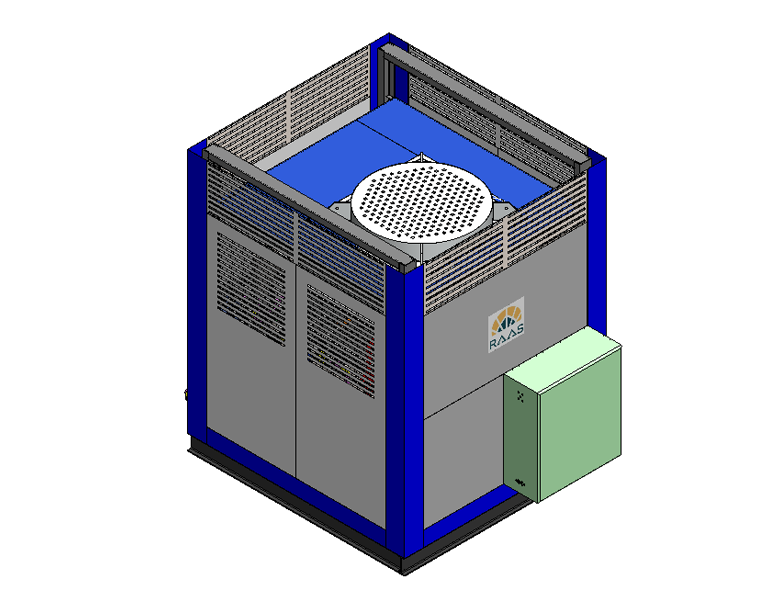

90 KW CNG Online Compressor

90 KW CNG Online Compressor
  • SPEED (RPM) 1800
  • RATED HP (COMPRESSION) 250
  • RATED HP (THROUGH TOTAL) 400
  • NO. of THROWS 2
  • ROD LOAD TENSION (lbs) 10,000
  • ROD LOAD COMPRESSION (lbs) 11,000
  • COMBINED ROD LOAD (lbs) 20,000
  • STROKE (in) 3
  • PISTON ROD DIAMETER (in) 1.125
  • CRANKSHAFT MATERIAL 42 Cr Mo 4
  • CONNECTING ROD MATERIAL 65-45-12
  • CRANKSHAFT PIN DIAMETER (in) 3.125
  • CRANKSHAFT PIN BEARING WIDTH MAJOR (in) 1.741
  • CRANKSHAFT PIN BEARING WIDTH MINOR (in) 1.366
  • CRANKSHAFT MAIN BEARINGS SPHERICAL ROLLER
  • CONNECTING ROD PIN DIAMETER (in) 2.5
  • CONNECTING ROD BEARING WIDTH MAJOR (in) 2.125
  • CONNECTING ROD BEARING WIDTH MINOR (in) 1.125
  • UNIT LENGTH (in) 31
  • UNIT WIDTH (in) 80
  • UNIT WEIGHT DRY (lbs) 1750

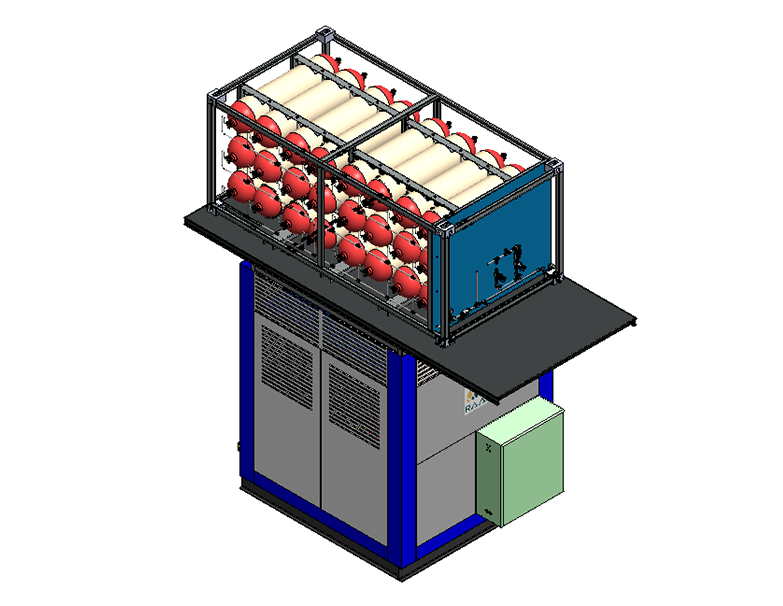

160 KW CNG Online Compressor

160 KW CNG Online Compressor
  • SPEED (RPM) 1800
  • RATED HP (COMPRESSION) 250
  • RATED HP (THROUGH TOTAL) 400
  • NO. of THROWS 2
  • ROD LOAD TENSION (lbs) 10,000
  • ROD LOAD COMPRESSION (lbs) 11,000
  • COMBINED ROD LOAD (lbs) 20,000
  • STROKE (in) 3
  • PISTON ROD DIAMETER (in) 1.125
  • CRANKSHAFT MATERIAL 42 Cr Mo 4
  • CONNECTING ROD MATERIAL 65-45-12
  • CRANKSHAFT PIN DIAMETER (in) 3.125
  • CRANKSHAFT PIN BEARING WIDTH MAJOR (in) 1.741
  • CRANKSHAFT PIN BEARING WIDTH MINOR (in) 1.366
  • CRANKSHAFT MAIN BEARINGS SPHERICAL ROLLER
  • CONNECTING ROD PIN DIAMETER (in) 2.5
  • CONNECTING ROD BEARING WIDTH MAJOR (in) 2.125
  • CONNECTING ROD BEARING WIDTH MINOR (in) 1.125
  • UNIT LENGTH (in) 31
  • UNIT WIDTH (in) 80
  • UNIT WEIGHT DRY (lbs) 1750
