Type 1 Gas Cascades

  • As confirmed by PESO, we have designed, constructed and tested as per IS 7285 latest version or BS 5045: Part-1
  • The cylinder material is seamless alloy steel (Cr-Mo)
  • Neck threading as per IS: 3224 – 1979
  • Thread confirming IS: 3224-1970
  • Shut off valve confirming IS: 3224

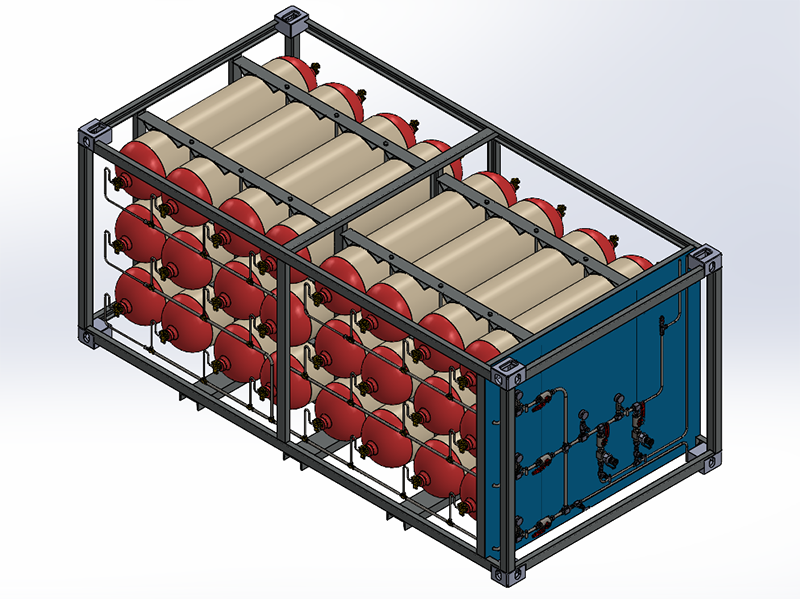

cascade-iso-view

3000 water litre

  • Used as stationary cascade at CNG stations
  • There are 40 cylinders of 75 water Litres each
  • At 250 Bars with a gas density of 0.7 Kg/Litre, it can store 530 Kgs approx. of CNG

4500 water litre

  • Used as mobile cascade to carry CNG from mother station to daughter booster stations
  • To fill and carry CNG at 200 Bars with gas density of 0.7 Kg/Litres, with 630 Kgs approx. of stored CNG
